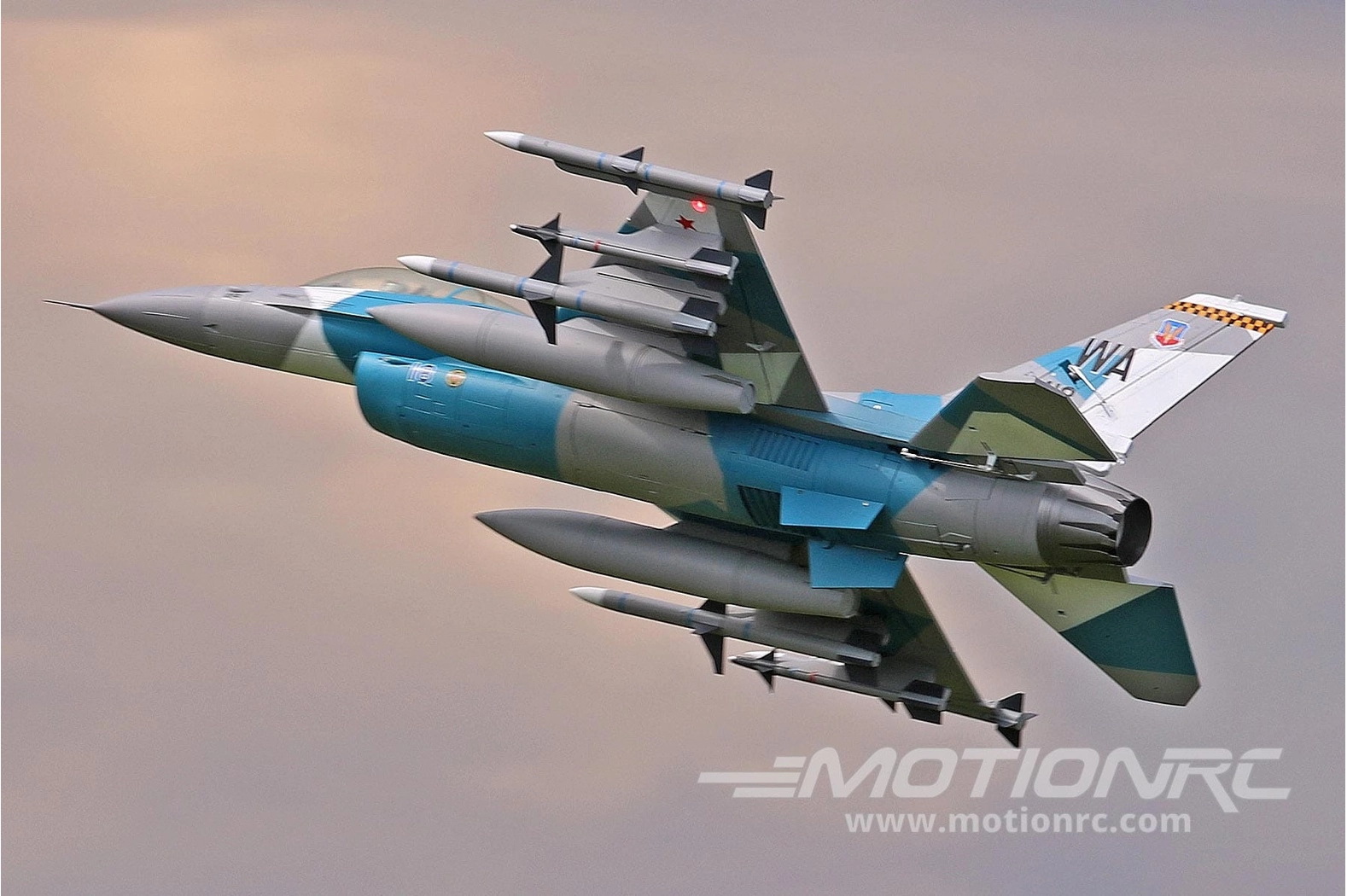

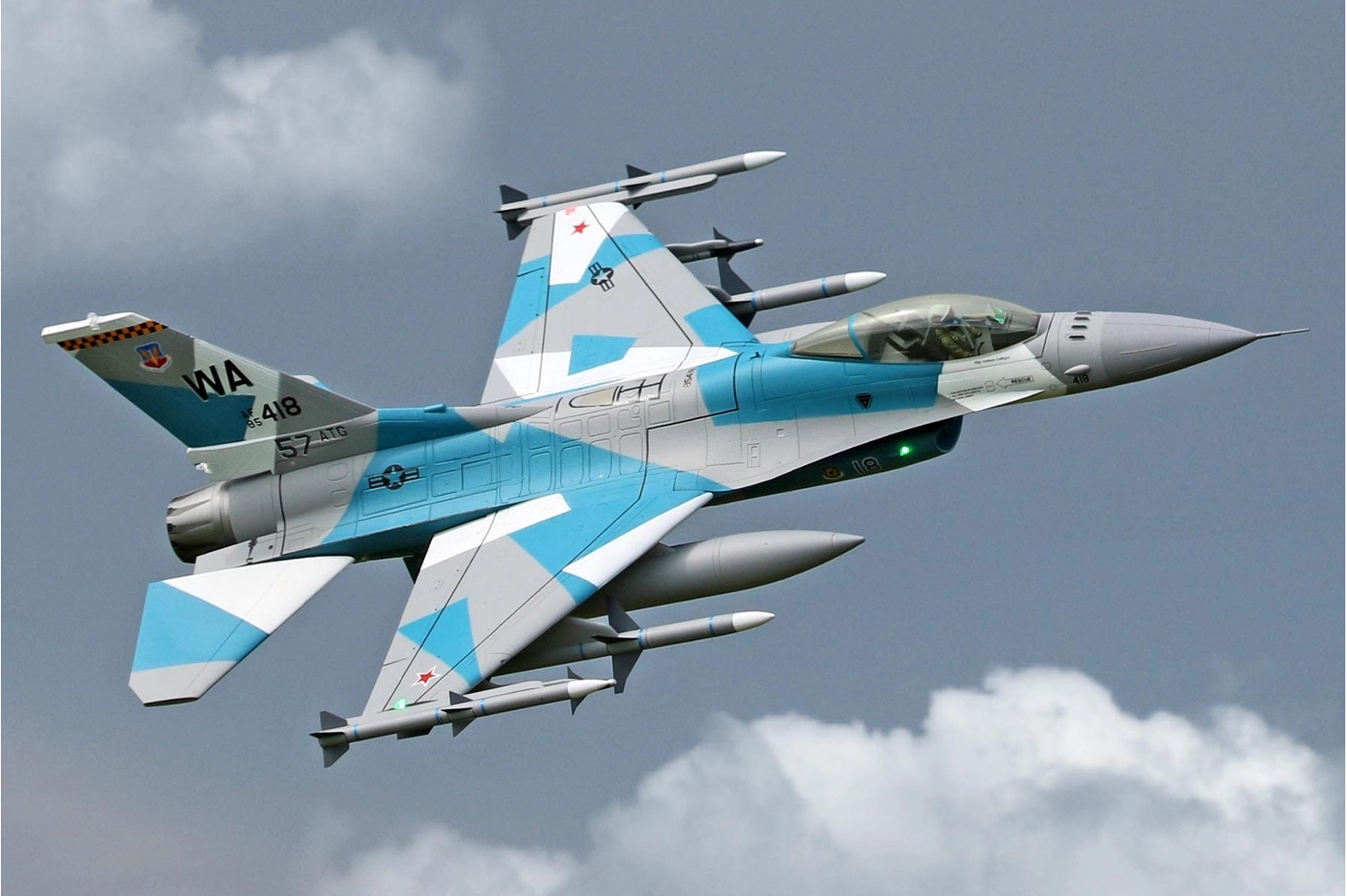

Freewing F-16 90mm 6S Jet PNP V2 High Performance (Aggressors Camo)

Description

The next-generation F-16C 90mm EDF from Freewing showcases a range of performance and design upgrades that elevate realism, flight capability, and convenience. Featuring a striking 64th Aggressors Livery, this model honors the distinguished 64th Aggressor Squadron, part of the legendary Aggressor program initiated in 1972. This squadron played a crucial role in training pilots through dissimilar air combat tactics, emulating potential adversaries.

With quick-release wings, an easier fuselage assembly, and a slide rail system for armament, the updated F-16C 90mm prioritizes ease of use. Additionally, the scale appeal and functionality have reached new heights with fully functional, servo-driven air brakes, updated scale details, extra molded-in rivets, painted landing gear, and other intricate detail components. The Freewing F-16C 90mm is designed to impress.

The new power system, featuring a 3668-1960Kv inrunner motor and a 12-blade EDF, delivers exceptional speed and power for long vertical climbs and rapid show passes over the runway. It also includes reverse thrust for short landing rollouts.

Experience the thrill and precision of the Freewing F-16C 90mm EDF – a true tribute to its full-scale counterpart, bringing advanced aerodynamics and stunning detail to your collection.

Features:

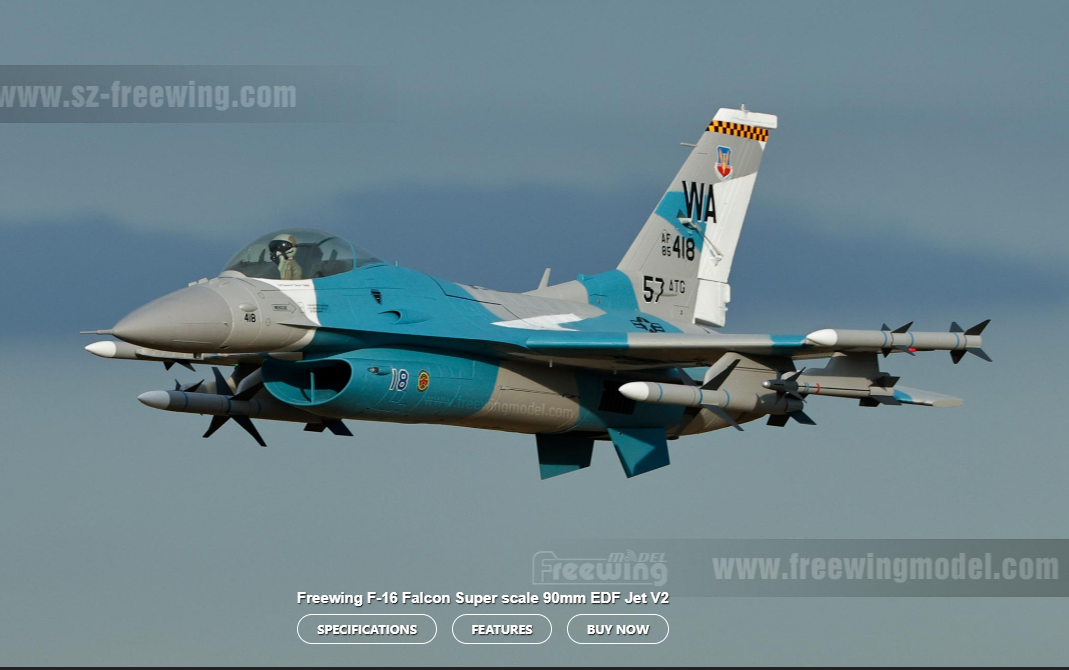

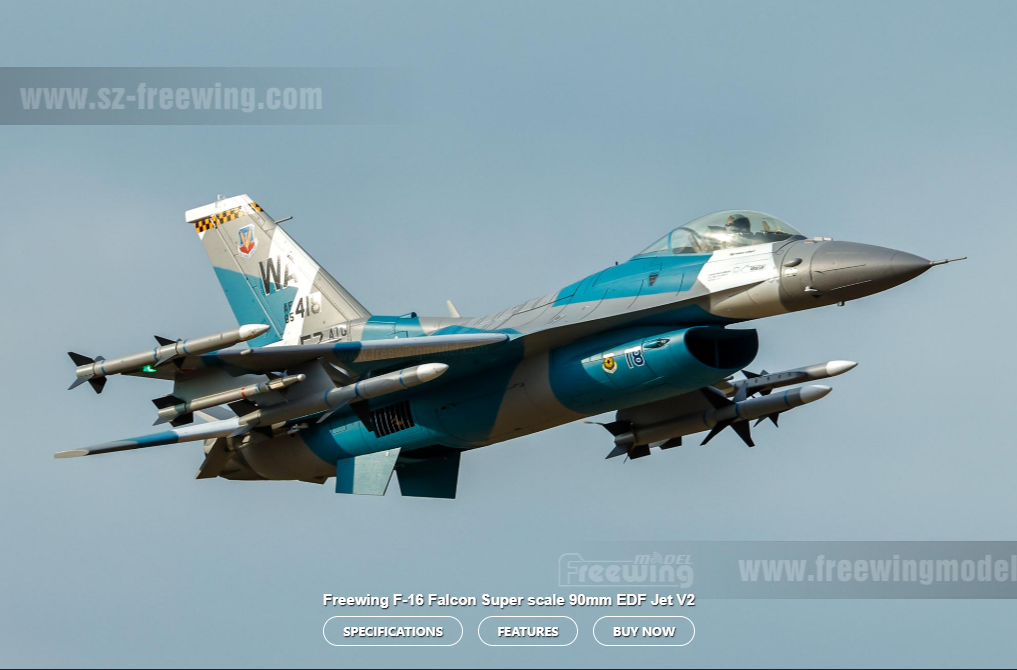

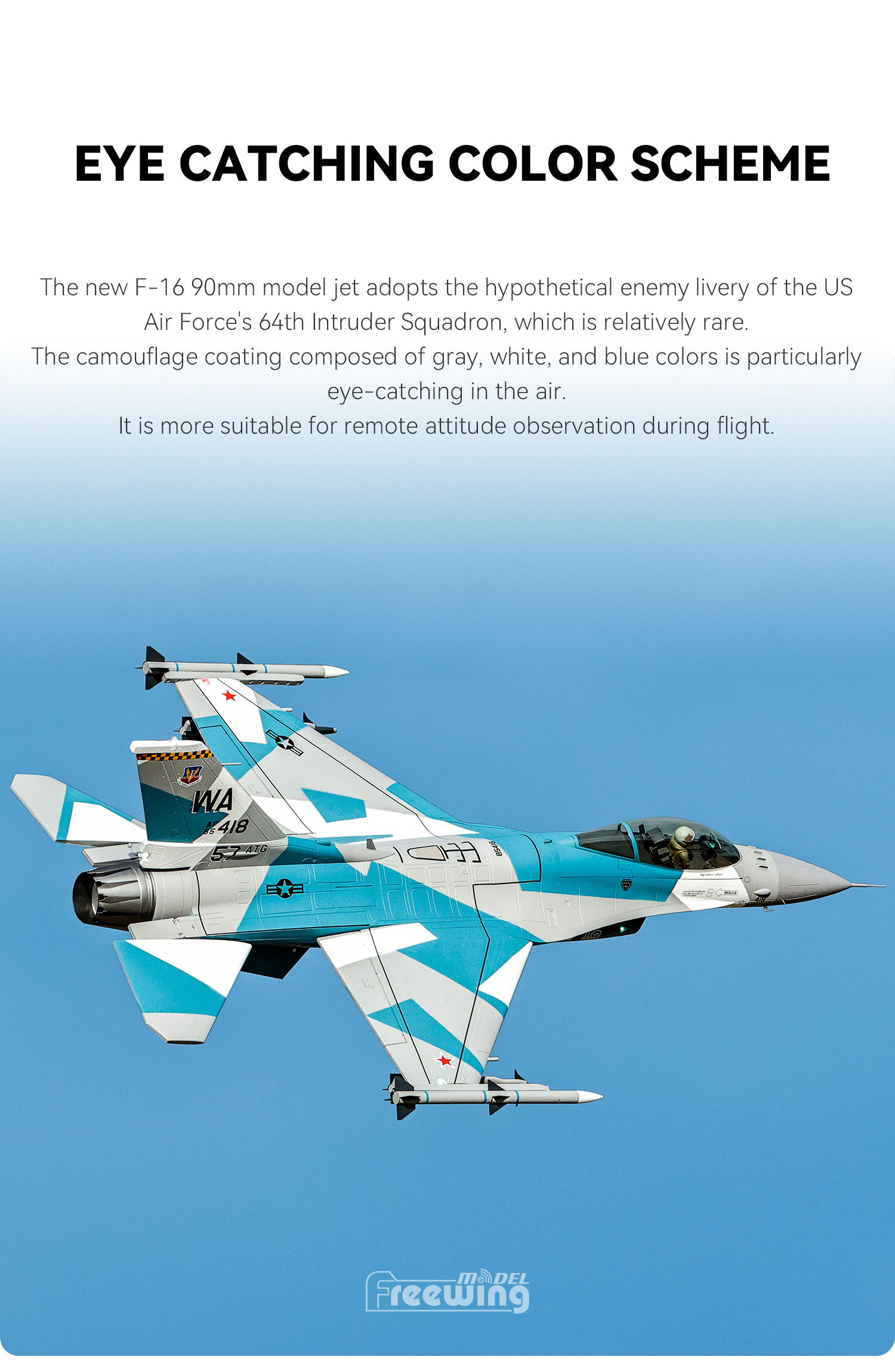

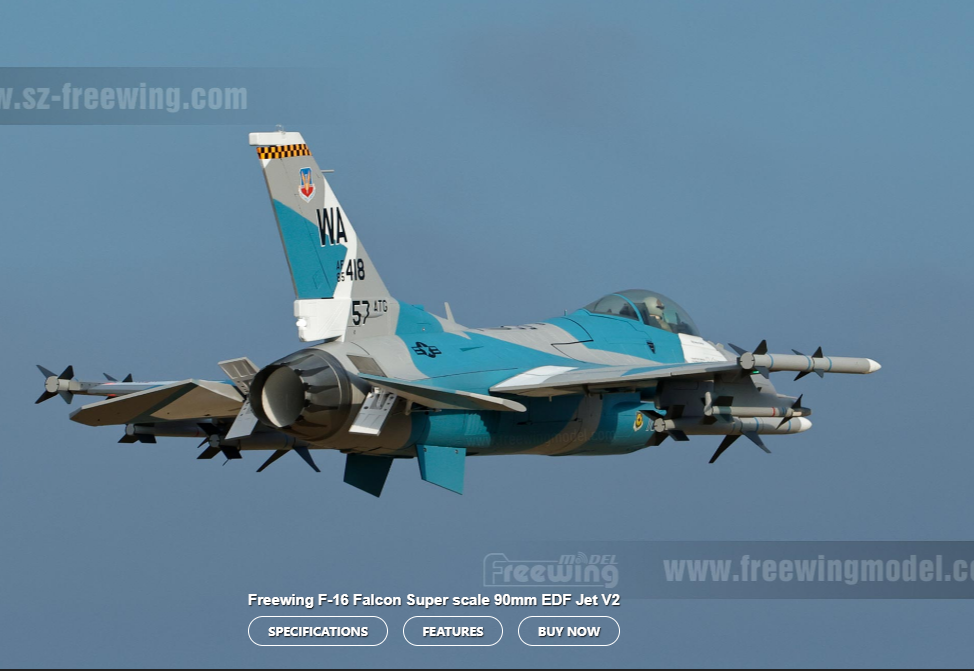

NEW! 64th Aggressors Camo Livery: A striking, historically inspired camouflage design

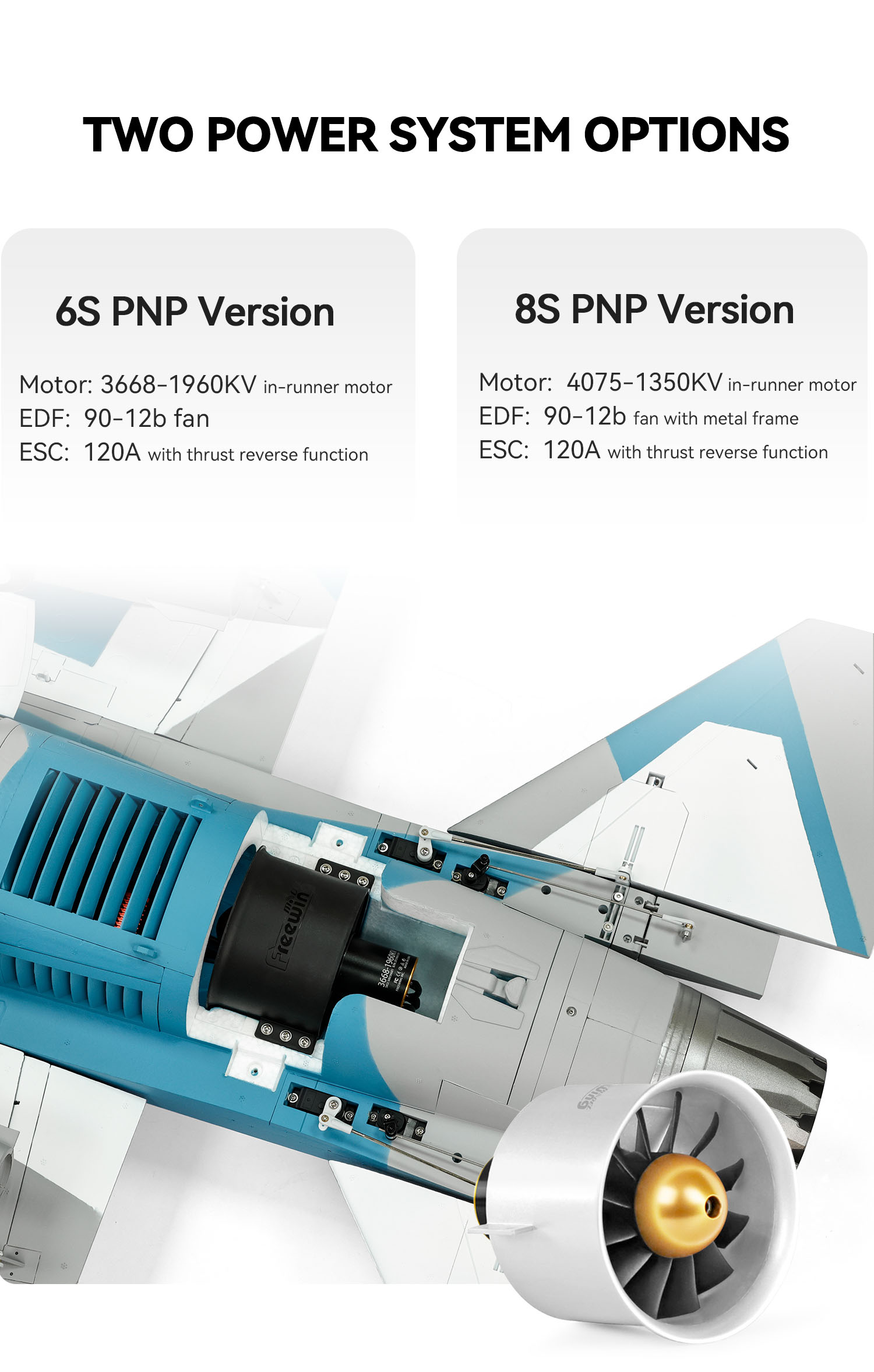

NEW! Power System: 3668-1960Kv Inrunner Motor with a 90mm 12-blade EDF
NEW! 120A Brushless ESC with 7A UBEC and Thrust Reversing: Provides reliable and efficient power management as well as thrust reversing capability

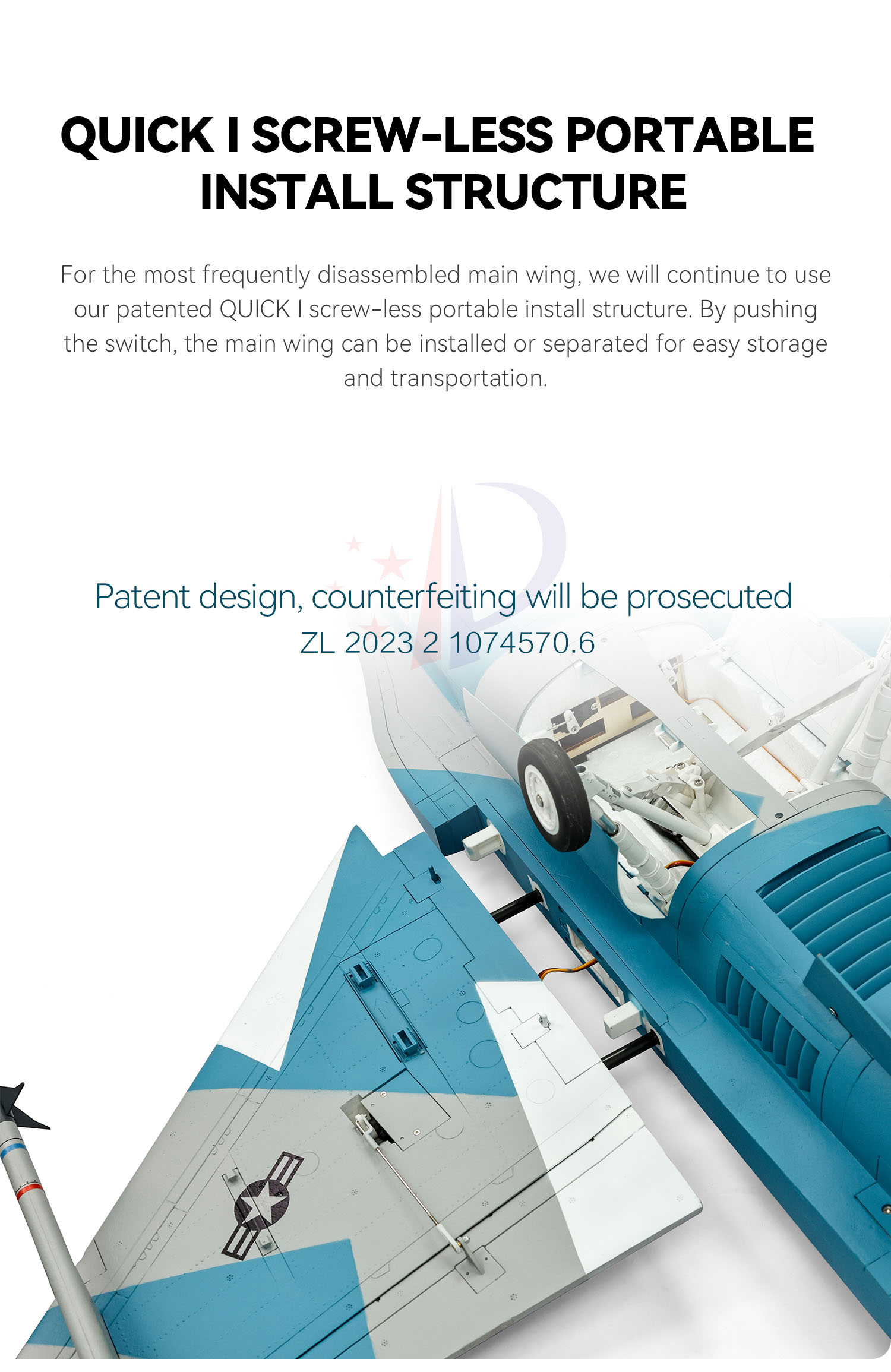

NEW! Screwless, Quick-Release Main Wings: For easy assembly and transport

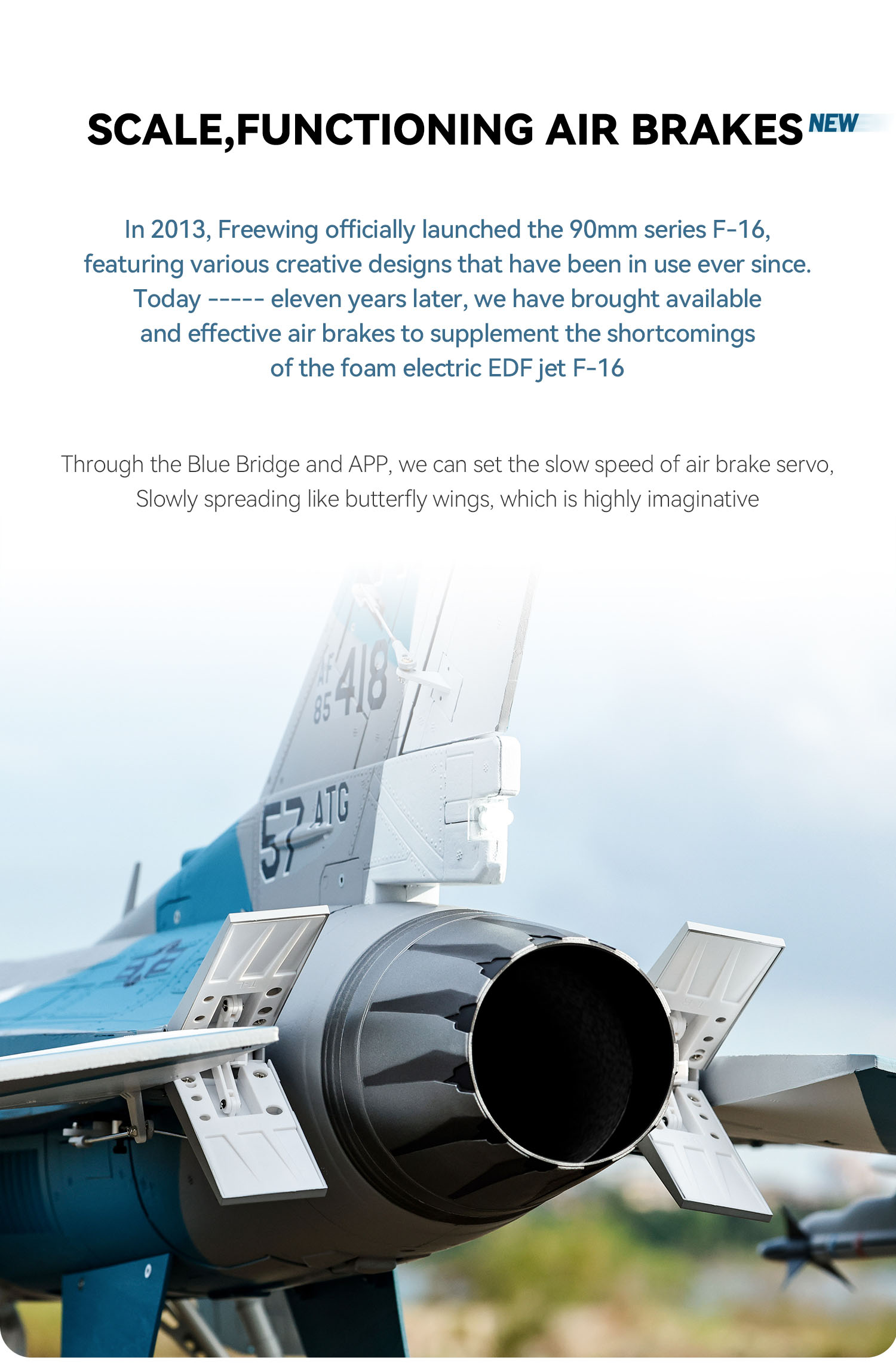

NEW! Scale, Servo-Driven Air Brakes: Enhances scale realism and performance

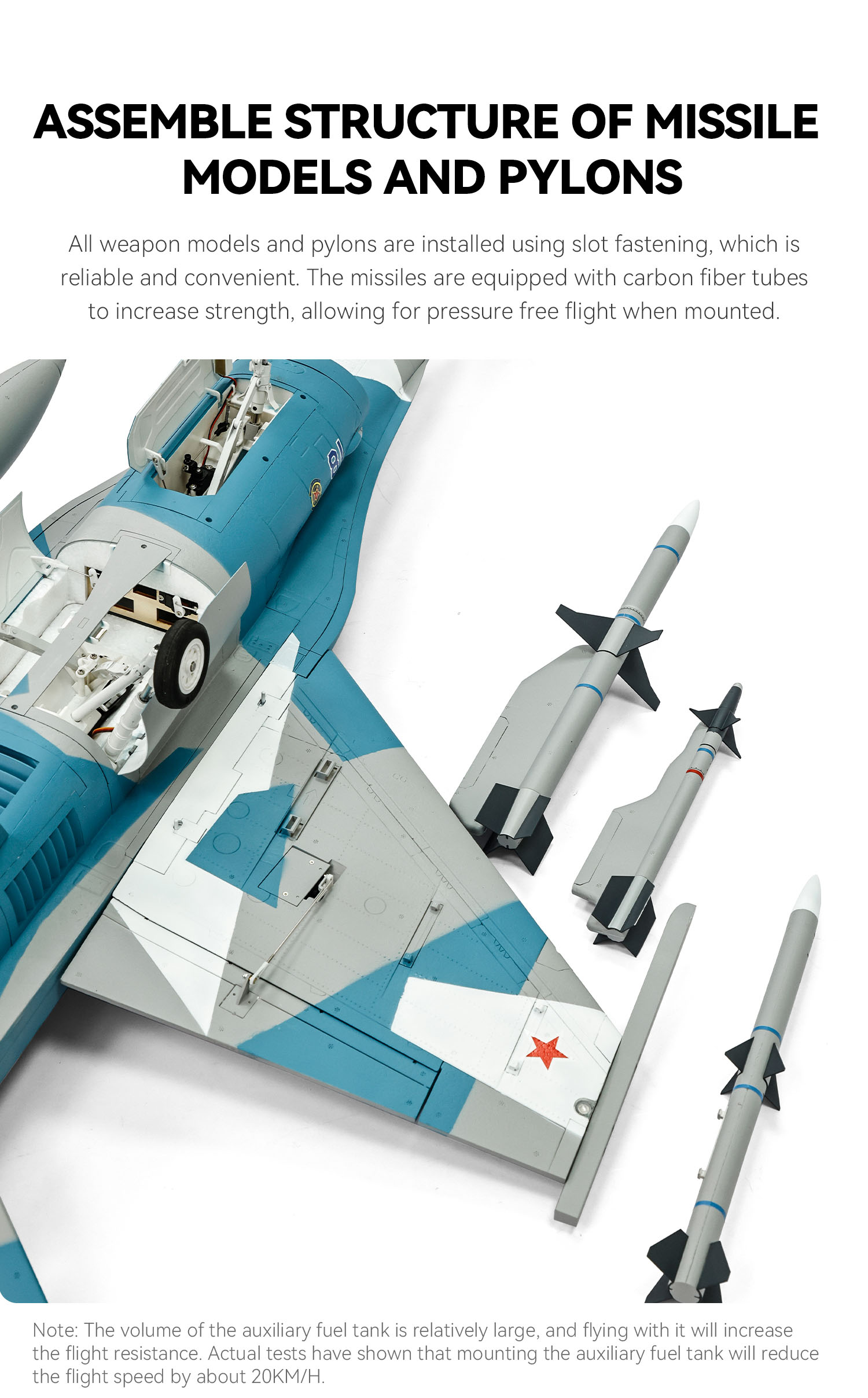

NEW! Quick Attach Rail System: Simplifies fuel tank and armament attachment

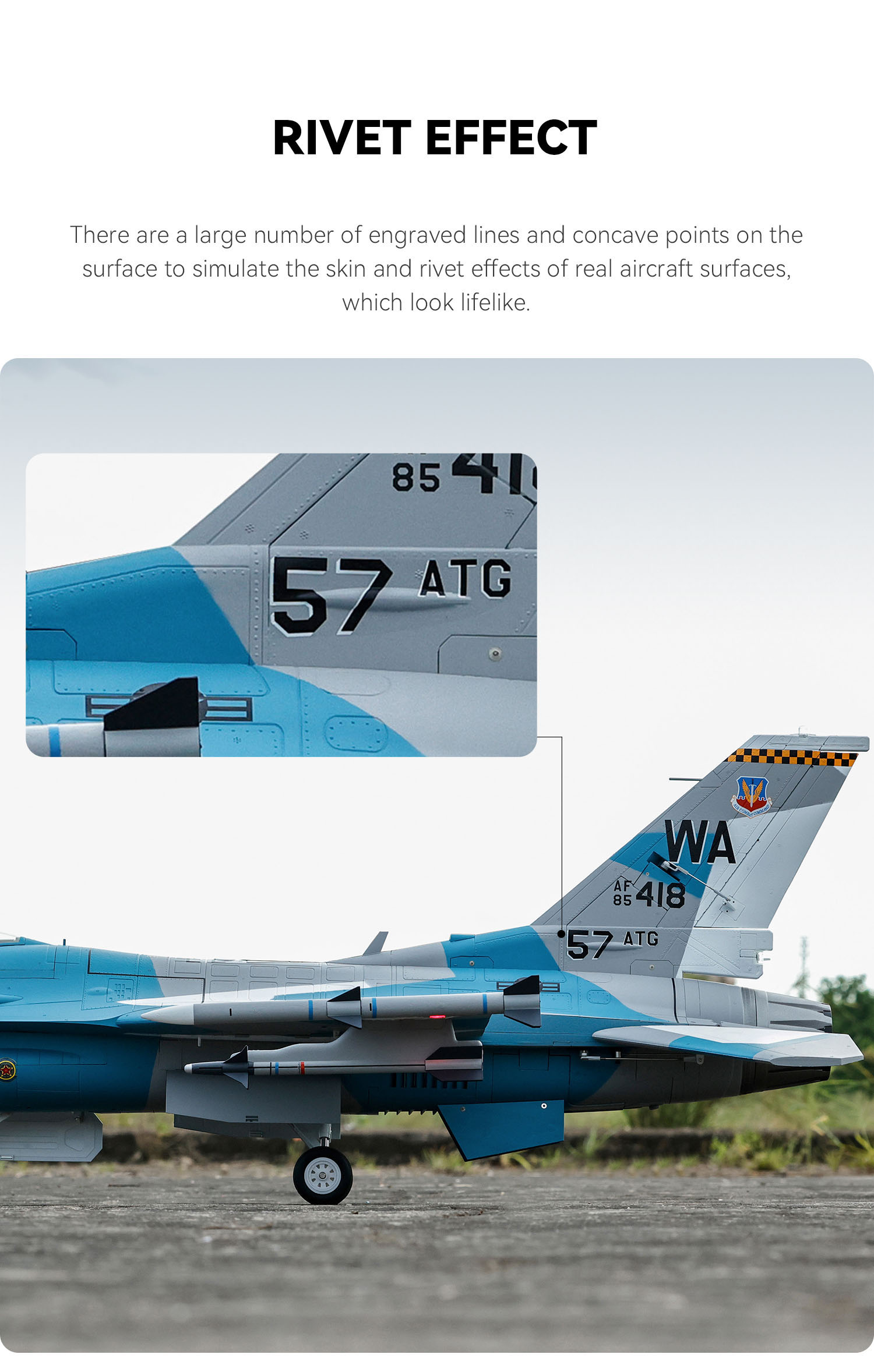

NEW! Additional Molded-In Scale Rivet and Panel Details: Adds to the model’s scale appeal and authenticity

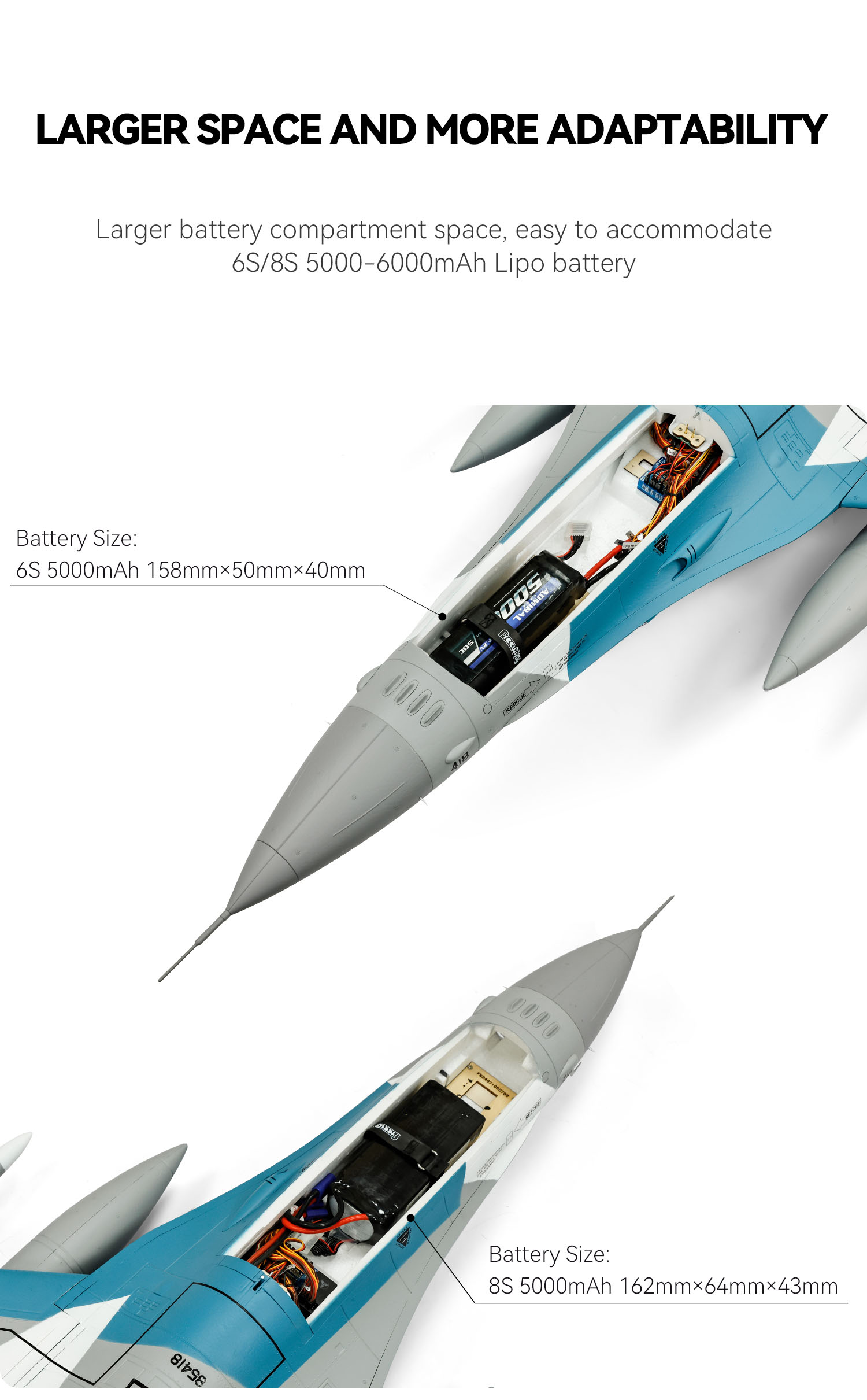

NEW! Increased Battery Compartment Size: Accommodates larger batteries

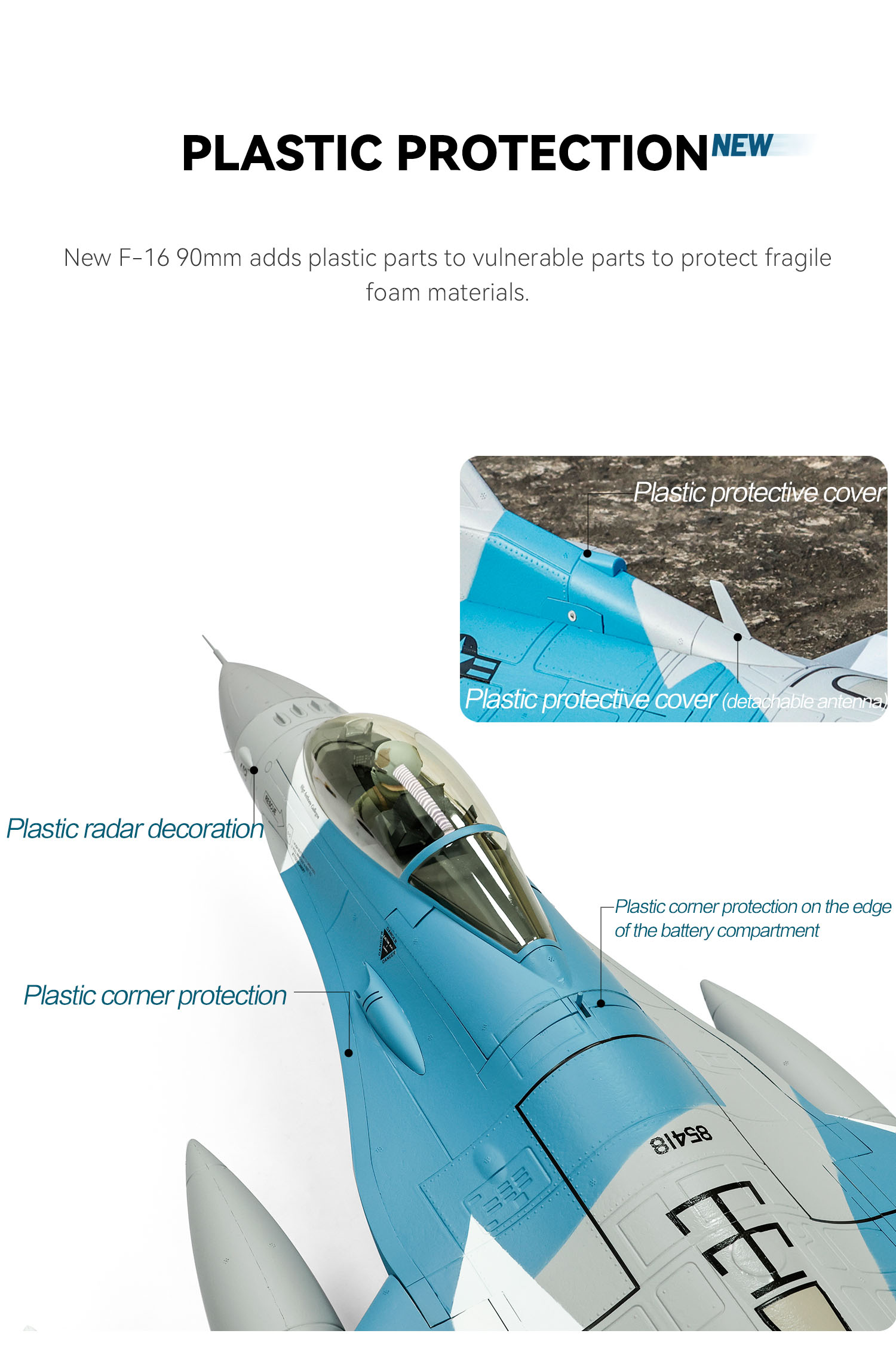

NEW! Plastic Corner Protection: Around the battery compartment and fuselage chines for added durability

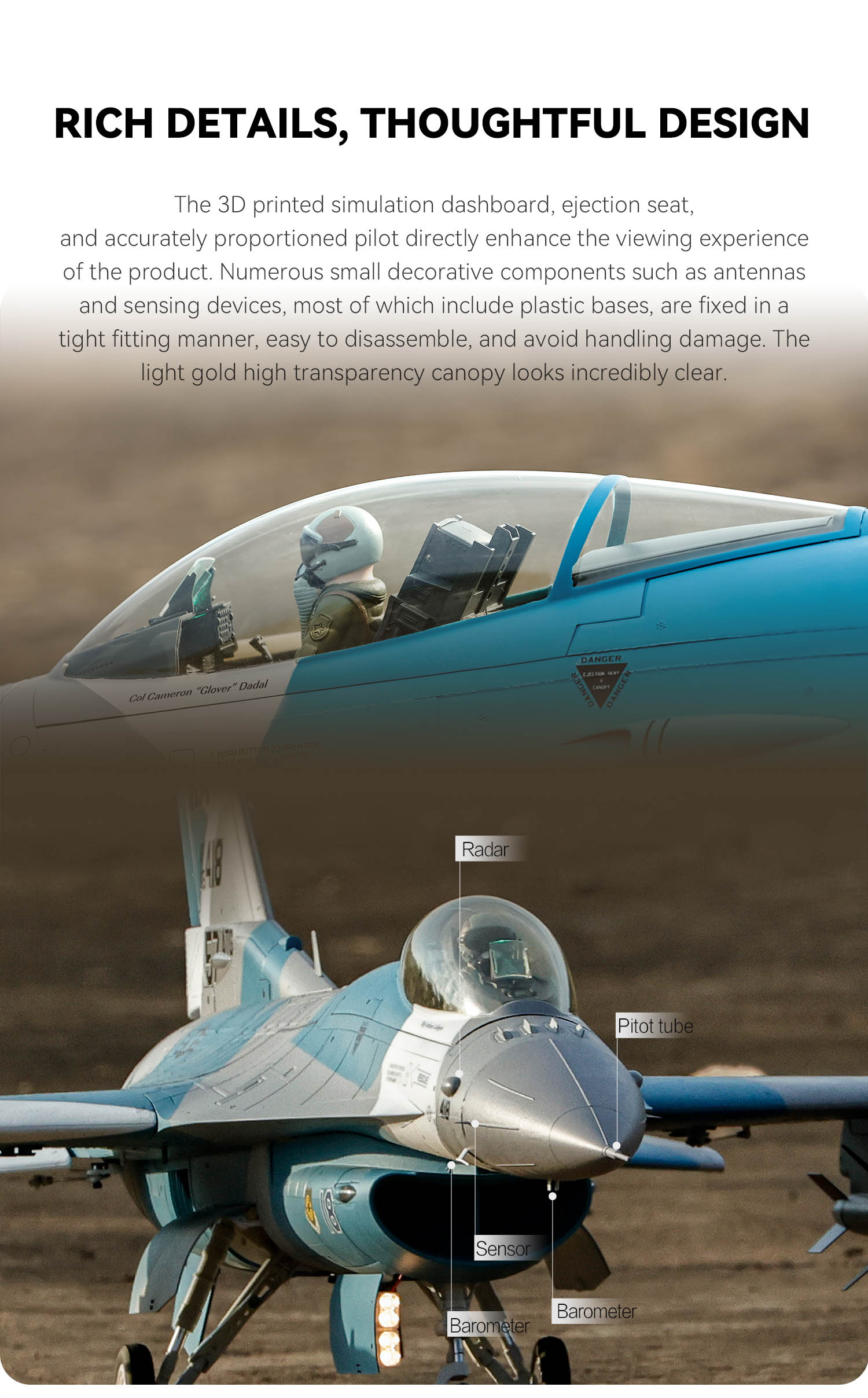

NEW! Additional Plastic Scale Details Included: Enhances the model’s visual appeal

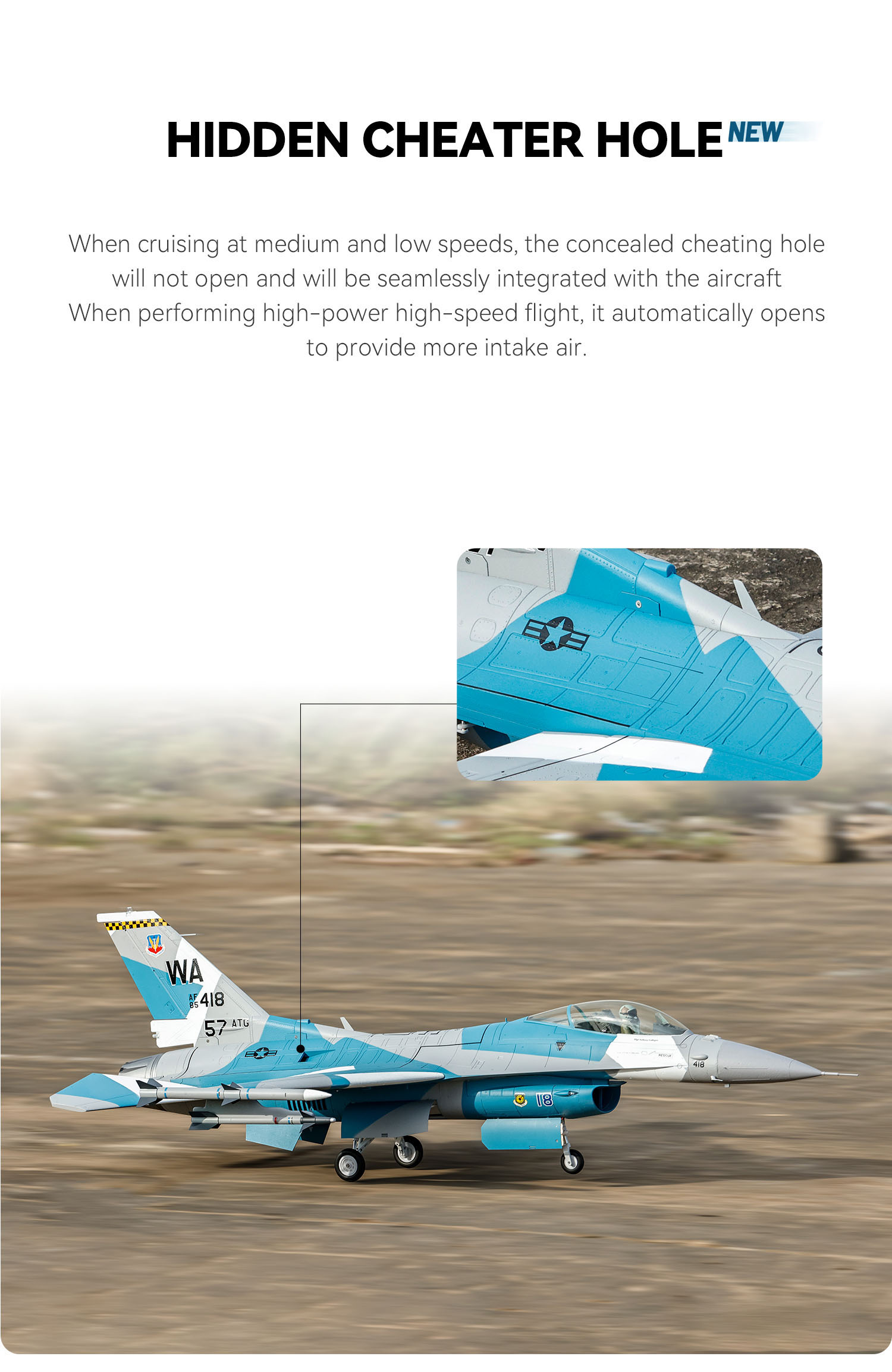

NEW! Spring-Loaded Cheater Holes: Improves power, speed, and overall performance

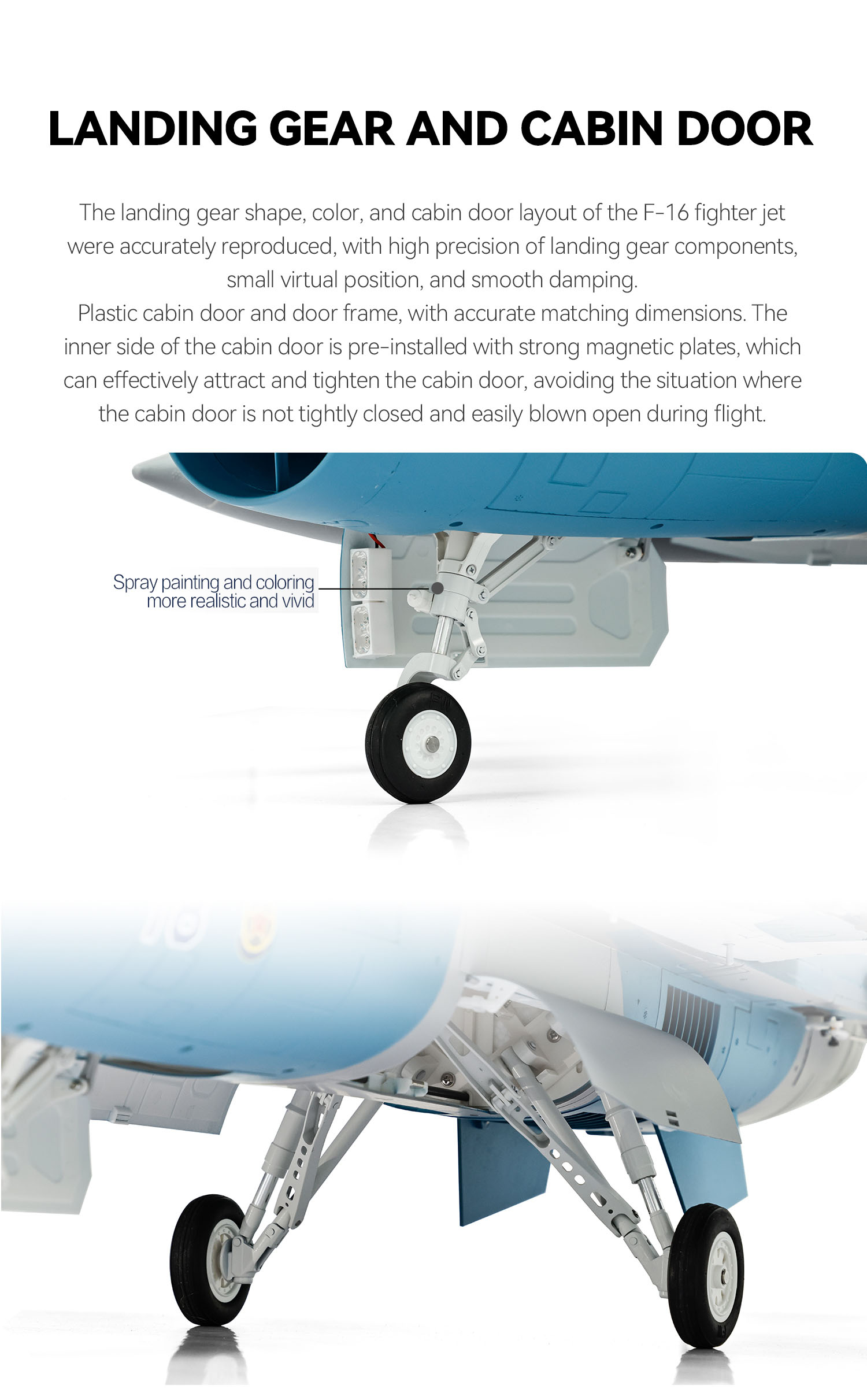

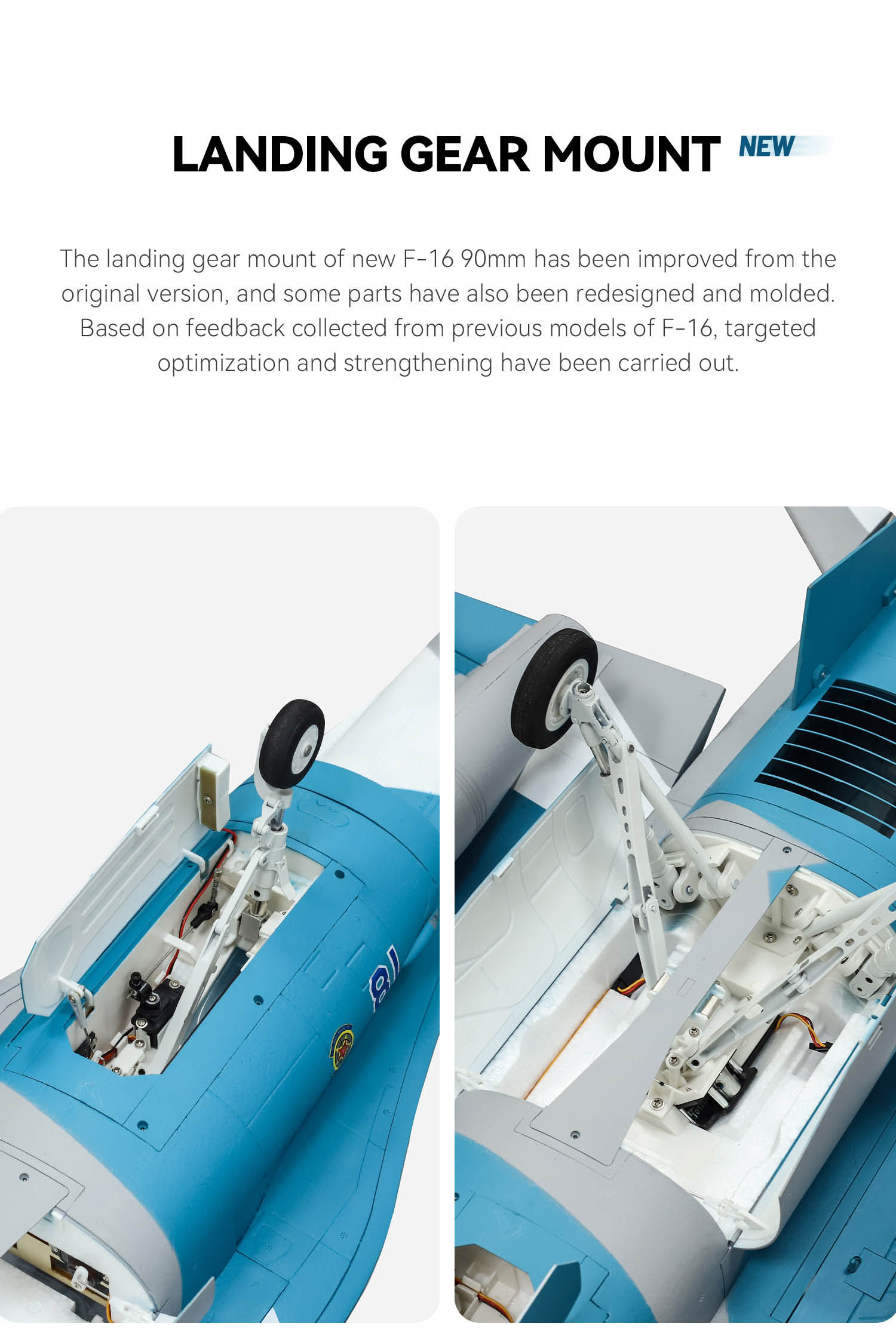

NEW! Stronger Landing Gear Mounts and Painted, CNC-Machined Landing Gear: Adds scale aesthetic appeal and adds durability
NEW! Spring-Loaded Battery Latch: Secures the battery with ease

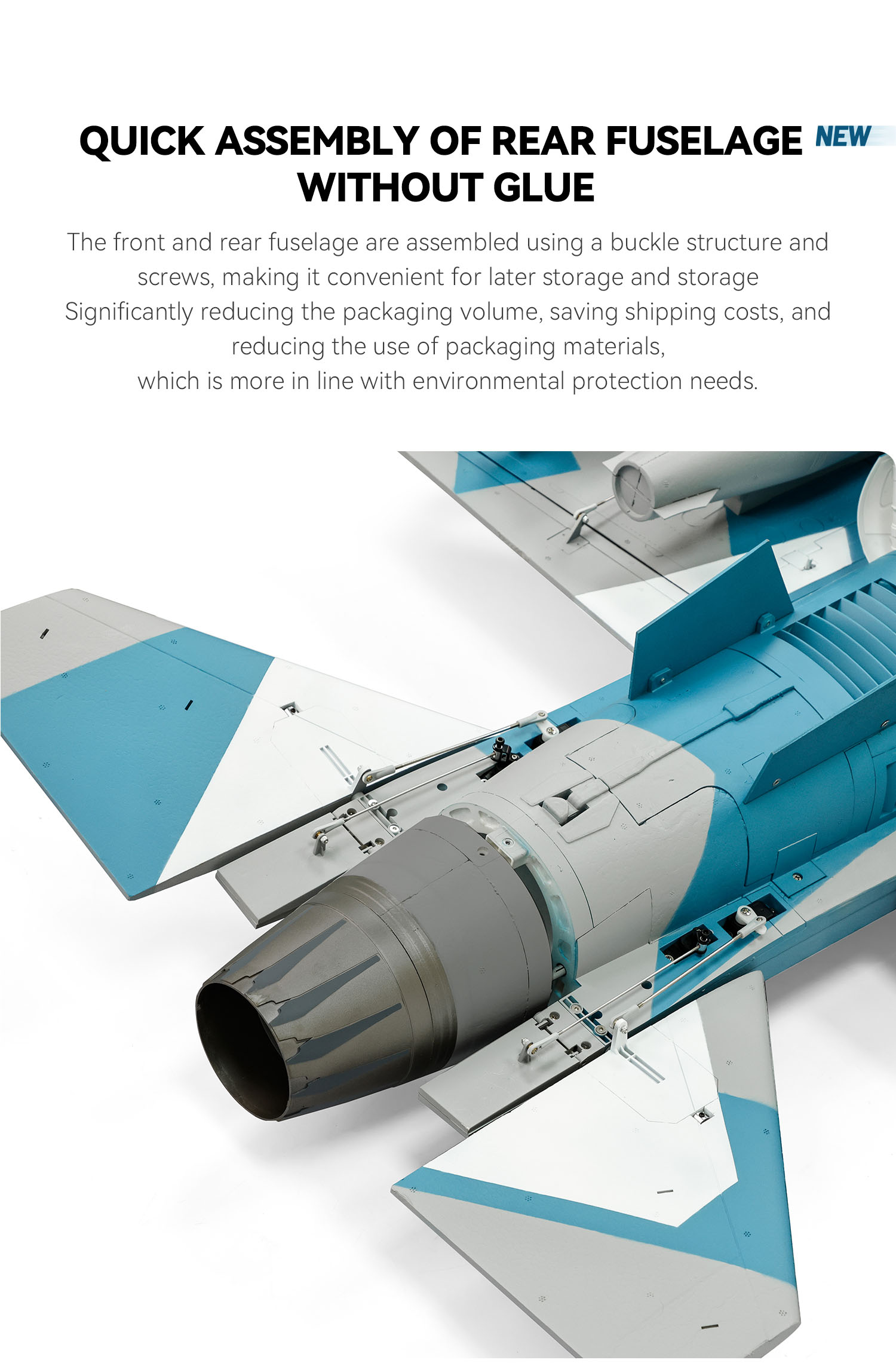

NEW! Glueless Rear Fuselage Assembly: Simplifies the build process
Officially Licensed by Lockheed Martin
Sequenced gear doors provide added realism and reduced drag

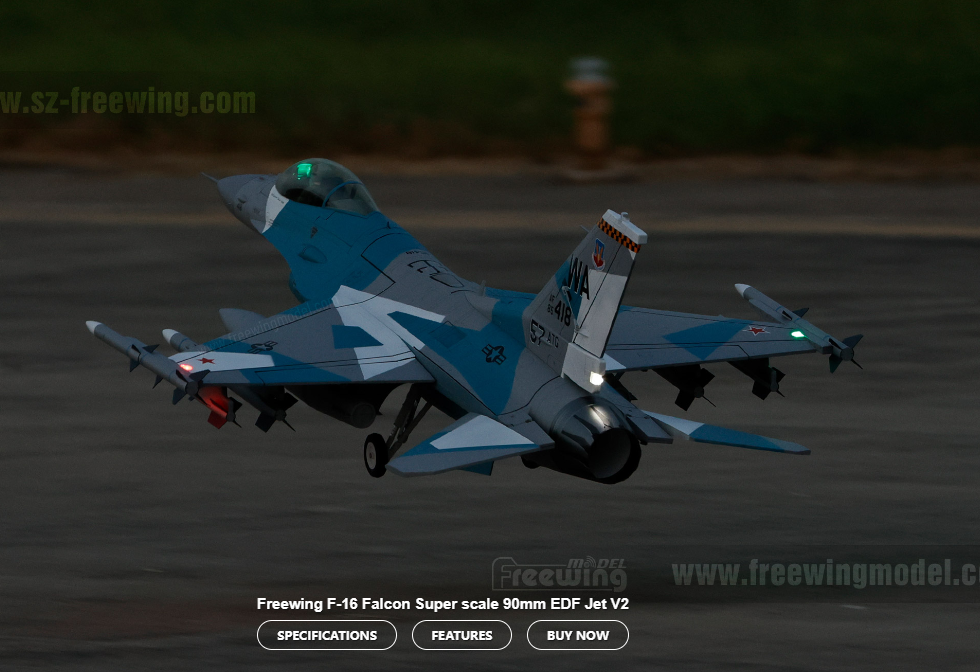

Bright LED navigation and landing lights for enhanced realism and dawn/dusk maneuvers
Carbon fiber wing spars
Ball linkages on all control surfaces
Nylon hinges on all control surfaces
Product Specifications :

Model Scale 1/10 Scale
Wingspan 955mm / 37.6in
Length 1457mm / 57.4in
Empty Weight 3.30kg (7.27lbs) without battery and armament

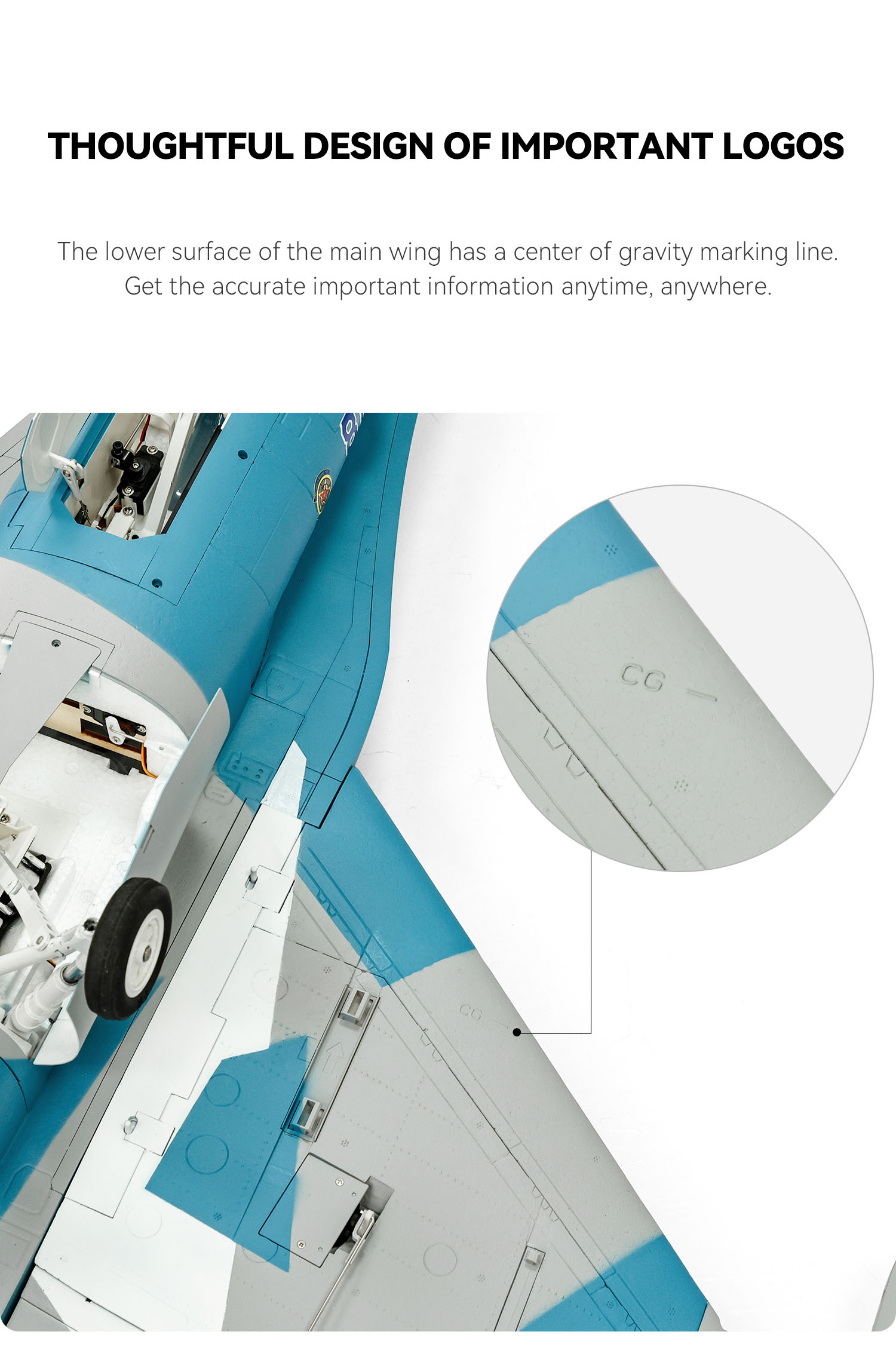

CG (Center of Gravity) 110mm (4.3″) from the leading edge of the wing at the root
Power System 3668-1960Kv Inrunner Motor
Electronic Speed Control 120A Brushless with 7A UBEC, thrust reversing, EC5 Connector
Propeller / EDF 90mm 12-Blade EDF
Servos :

9g hybrid digital standard with 300mm lead : nose gear steering
9g hybrid digital standard with 400mm lead : nose gear door
17g metal gear digital standard with 100mm lead : left rudder, right rudder
23g metal gear digital reverse 100mm lead : right elevator
23g metal gear digital standard 100mm lead : left elevator
17g metal gear digital standard with 200mm lead : left flap, right flap
17g metal gear digital standard with 300mm lead : left aileron, right aileron
Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6S 22.2V 5000mAh LiPo with EC5 connector (required)
Required Radio 7+ Channel (required)
Ailerons Yes
Elevator Yes
Rudder Yes
Flaps No
Lights Yes
Hinge Type Nylon Reinforced
Material EPO Foam
Skill Level Intermediate/Advanced/Expert
Build Time 1 Hour
Recommended Environment Outdoor, 150+ foot paved runway or short manicured grass

Includes:

Freewing F-16 V2 Ultra Performance 6S 90mm EDF Jet – PNP
12-Blade EDF power system (installed)
3668-1960Kv brushless inrunner motor (installed)
120A ESC with thrust reversing and EC5 connector (installed)
Electronic retractable landing gear (installed)
Servos, LED Lights (installed)
Requires:

6 Channel radio – select a minimum 6 channel radio (7 channel for thrust reversing)
6 Channel receiver – select a minimum 6 channel receiver
6 Cell 22.2V 5000 mAh LiPo battery with EC5 connector
EC5 2-to-1 series adapter
6 Cell compatible battery charger – select a minimum 6 cell (6S)
